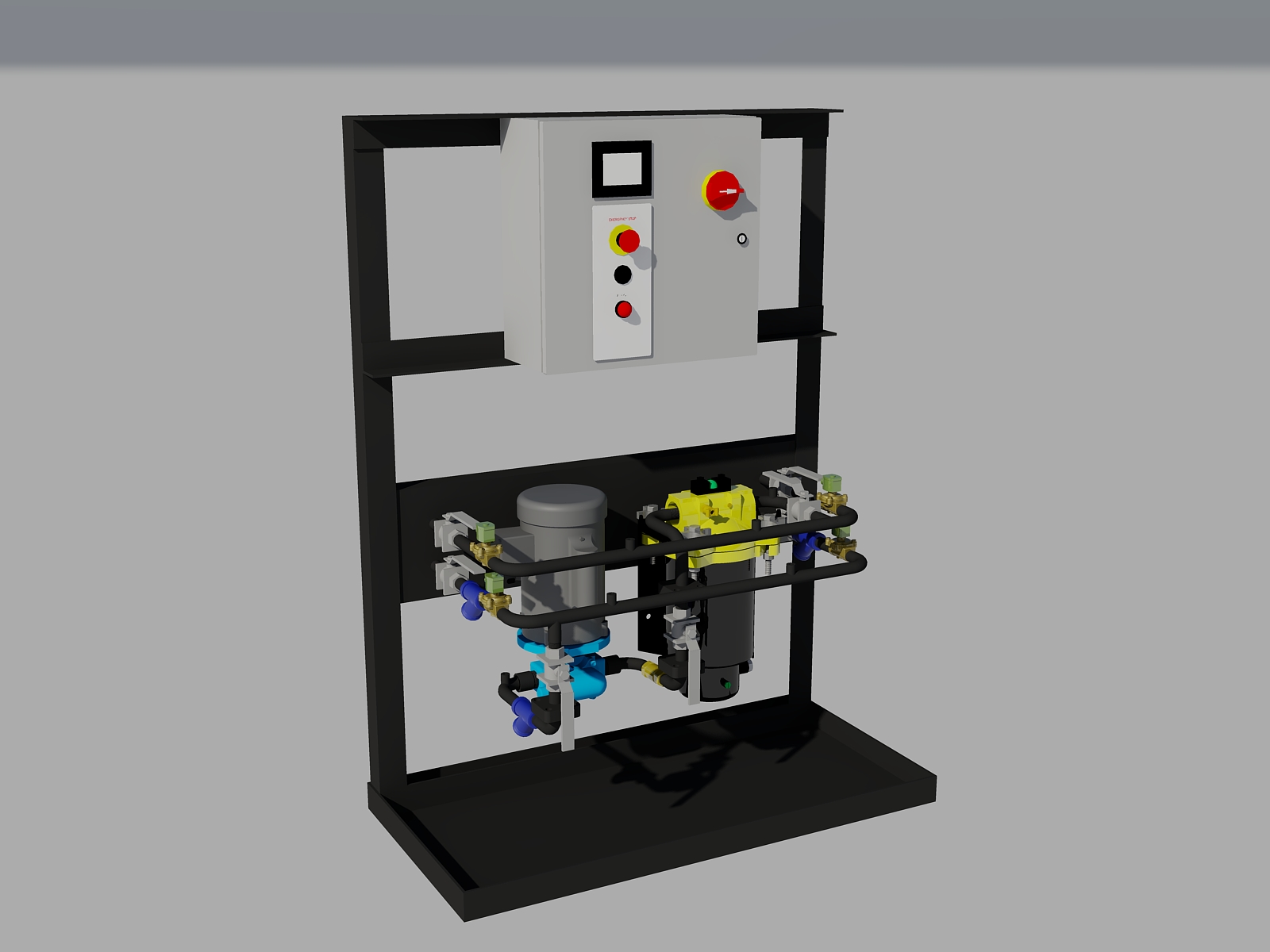

Earthsafe MM900 Integrated Solution for Generator Fuel

MM900 Integrated Fuel Solution

Fuel Fill, Filter, and Transfer

MM900 Integrated Solution is designed to provide a single module for all fuel management functions of generator day tanks, sub-base tanks, belly tanks, and limited volume bulk storage tanks. The system performs the following functions:(a) Receipt of Fuel to Gen Tanks, (b) Fuel Filter Polishing, (c) Auto-Refill from Remote Tanks, (d) Fuel Return Flow for Testing or Overfill Stop.

Get the Data Sheet

General:

  • Approvals: UL 508 Controller
  • Capacity: 3-30 GPM
  • Power 120-230 VAC, 1 Phase, 50-60 Hz
  • Controller: UL 508, PLC Basis with HMI
  • Interface: Output Relays for High, Low, Leak and Modbus (Optional BACnet)

Accessories:

  • Viking Fuel Transfer Pump
  • 4 or 5 Point Level Sensor, Flow, and Leak Sensor
  • Level and Temperature Transmitters
  • Filter - Particulate and Water to 1 Micron
  • Ball Valves, Check Valves, Strainers, Gauges

Integrated Multi-Function Fuel Solution:

The system performs the following functions:(a) Receipt of Fuel to Gen Tanks, (b) Fuel Filter Polishing, (c) Auto-Refill from Remote Tanks, (d) Fuel Return Flow for Testing or Overfill Stop.

Reliable Refill Systems:

Tanks are designed and furnished with pre-assembled and tested fuel transfer equipment and controls. Inlet control valves, transfer pumps, level sensors, leak sensors, and other equipment are all monitored and controlled by the Earthsafe C1 or C8 control panels.

Integrated Building Management Systems:

Earthsafe advanced controllers allow for the communication of vital tank operating information to other building systems. These systems may include Building Automation Systems, generator controls, switchgear and other power controls, security and fire alarm systems.

Readily Adaptable for Special Operation:

Earthsafe day tanks can be readily adapated for special operation characteristics such as: dual inlet valves, monitored valve positions, high level / overflow pumping, emergency evacuation, auto-commissioning, fluid metering, high temperature control.
