Reliable Generator Refueling for Large-Scale Data Centers

Earthsafe’s Cobotic Refueling System modernizes fuel logistics for hyperscale data center generators. As data centers grow larger and generator capacities increase, traditional fuel delivery methods struggle to keep up with demand—especially during extended power outages.

Conventional fuel tanker trucks with small pumps and manually handled hoses cannot deliver fuel fast enough to support continuous generator operation. Cobotic refueling enables rapid, high-flow fuel transfer directly from full tanker trucks, ensuring uninterrupted data center operations when grid power is unavailable.

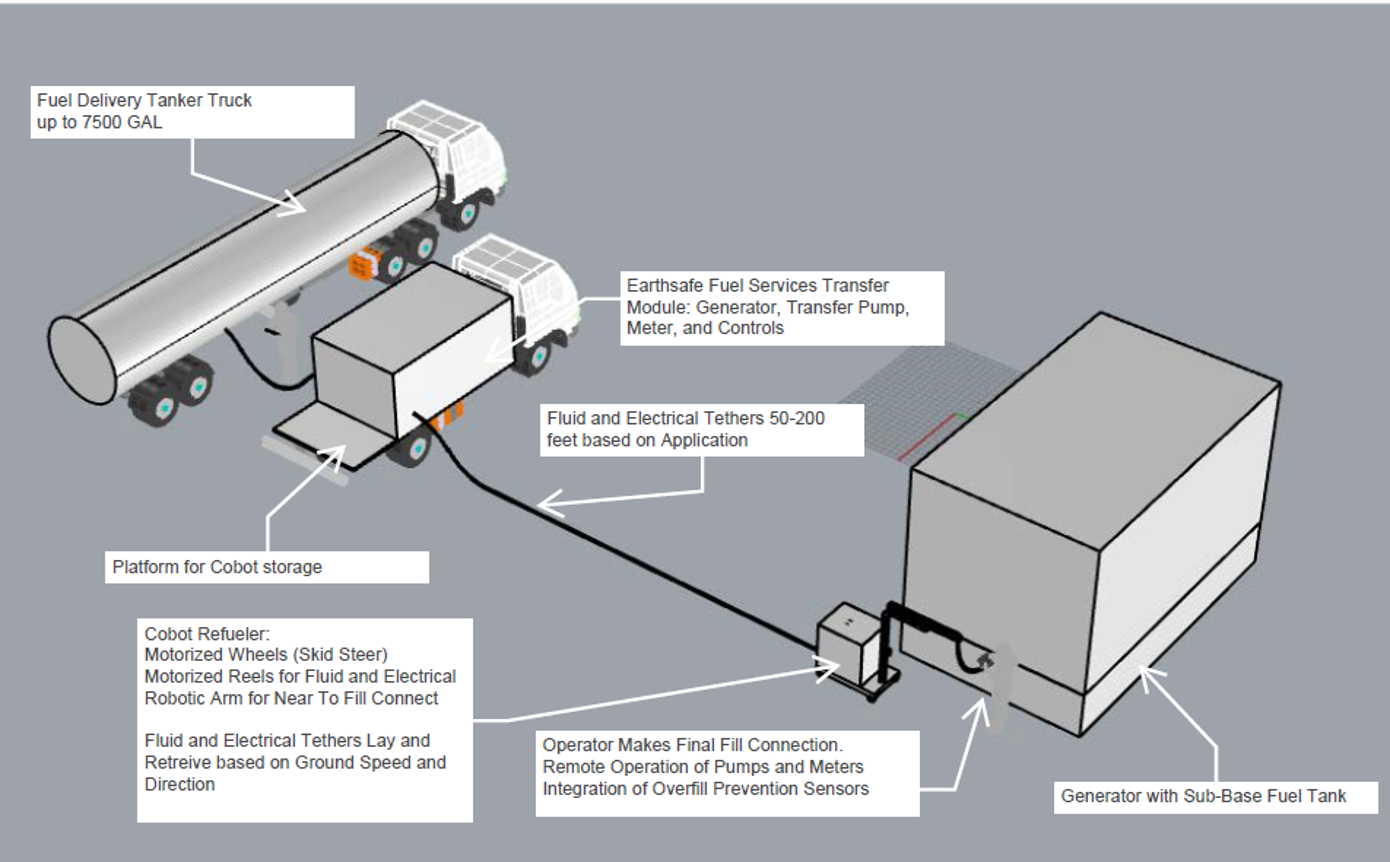

High-flow cobotic refueling system transferring fuel from tanker truck to hyperscale data center generator.

The Refueling Challenge in Hyperscale Data Centers

Generator Fuel Demand at Scale

Consider a typical hyperscale data center configuration:

  • 30 generators, each rated at 2.5 MW
  • Fuel consumption: ~270 gallons per hour (GPH) per generator at full load

Total fuel demand:

  • 8,100 gallons per hour
  • 194,400 gallons per 24-hour period

This equates to approximately one full 8,000-gallon tanker truck every hour during a prolonged outage.

To avoid costly demurrage fees and keep refueling operations efficient, each tanker must unload in under one hour. That requires a minimum unload rate of 130 gallons per minute (GPM) at the data center site.

Why Traditional Fuel Delivery Falls Short

During widespread outages, multiple data centers compete for limited fuel delivery resources. Traditional tanker trucks face several critical limitations:

Limited Availability

  • Only ~10% of the tanker truck fleet is equipped with onboard pumps capable of generator refueling.

Insufficient Tank Capacity and Flow Rates

  • Typical tanker capacity: 4,000 gallons
  • Typical unload rate: ~65 GPM, roughly half of what hyperscale sites require
  • Result: Twice as many trucks are needed to deliver the same volume of fuel.

Hose Handling Constraints

  • Increasing pump size isn’t practical because hose weight limits manual handling.
  • Operators are typically restricted to 1.5-inch diameter hoses, limiting achievable flow rates.

The Earthsafe Cobotic Refueling Solution

High-Flow, Automated Fuel Transfer

The Earthsafe Cobotic Refueler is purpose-built to solve these challenges. It enables safe, high-flow fuel transfer from full tanker loads directly to generator fuel tanks—quickly and reliably.

Compliance-based safety systems

Key capabilities include:

  • 2.0–2.5 inch diameter fuel hoses, reducing flow restrictions
  • Transfer rates up to 150 GPM, exceeding hyperscale requirements
  • Dedicated high-capacity transfer pumps matched to high-flow operation
  • Simple connection to standard tanker truck gravity discharge outlets

Integrated Safety Systems

Cobotic refueling systems are designed with multiple layers of protection:

  • Automatic shutdown via generator tank high-level overflow protection
  • Deadman controls for operator safety
  • Full grounding and bonding systems to prevent static discharge

Cobotic Refueling During an Emergency Power Outage

In an emergency scenario:

  • Cobotic equipment and trained operators can be dispatched and onsite within 2–4 hours of outage onset
  • Alternatively, equipment can be permanently staged at the data center, requiring only personnel deployment

Optimized Truck Utilization

Full-load tankers are dispatched from the fuel terminal:

  • <1 hour round trip: Only 2 trucks required
  • ~2 hour round trip: 3 trucks required

This represents a small fraction of the local full-load tanker fleet, minimizing strain on regional fuel logistics while maintaining continuous generator operation.

Emergency Scenario Timeline Graphic showing the process from power outage to refueling with the cobotic system.

Intelligent Fuel Distribution

Real-time fuel level monitoring at the data center directs the cobotic system to generators with the greatest need. The system is highly mobile and efficient, enabling rapid repositioning between generators as conditions change.

Efficient Refueling in Day-to-Day Operations

For standard top-off scenarios:

  • Cobotic equipment and operators are dispatched as needed (or staged onsite)
  • Full-load tanker deliveries reduce cost per gallon
  • Fuel level intelligence ensures precise, efficient distribution
  • Minimal disruption to data center operations

Standard Generator Top-Off (Non-Emergency Operations)

Cobotic refueling also streamlines routine generator maintenance and testing.

Typical Monthly Fuel Usage

  • 30 generators
  • ~1 hour per month of testing at 50% load
  • Estimated fuel consumption: ~4,000 gallons per month

Every two months:

  • One 8,000-gallon full tanker load is delivered
  • Fuel is distributed across all 30 generators (≈270 gallons per generator)

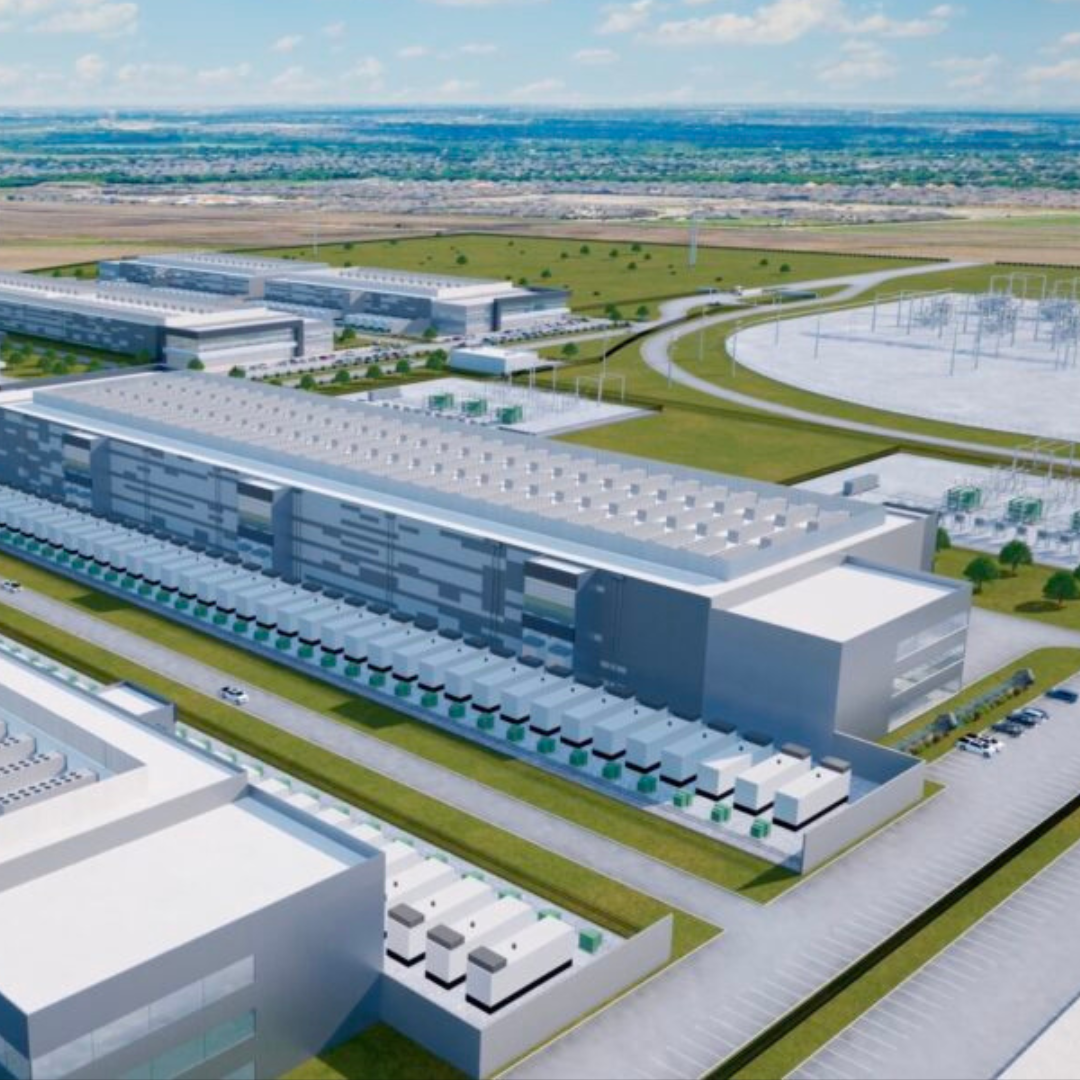

Data center generator power concept.

Built for the Scale and Reliability Hyperscale Data Centers Demand

Earthsafe Cobotic Refueling delivers the speed, safety, and scalability required for modern data center generator fueling—both in emergencies and routine operations. By enabling high-flow refueling from full tanker loads, Cobotic systems reduce logistics bottlenecks, lower operational risk, and help ensure continuous uptime when it matters most.
